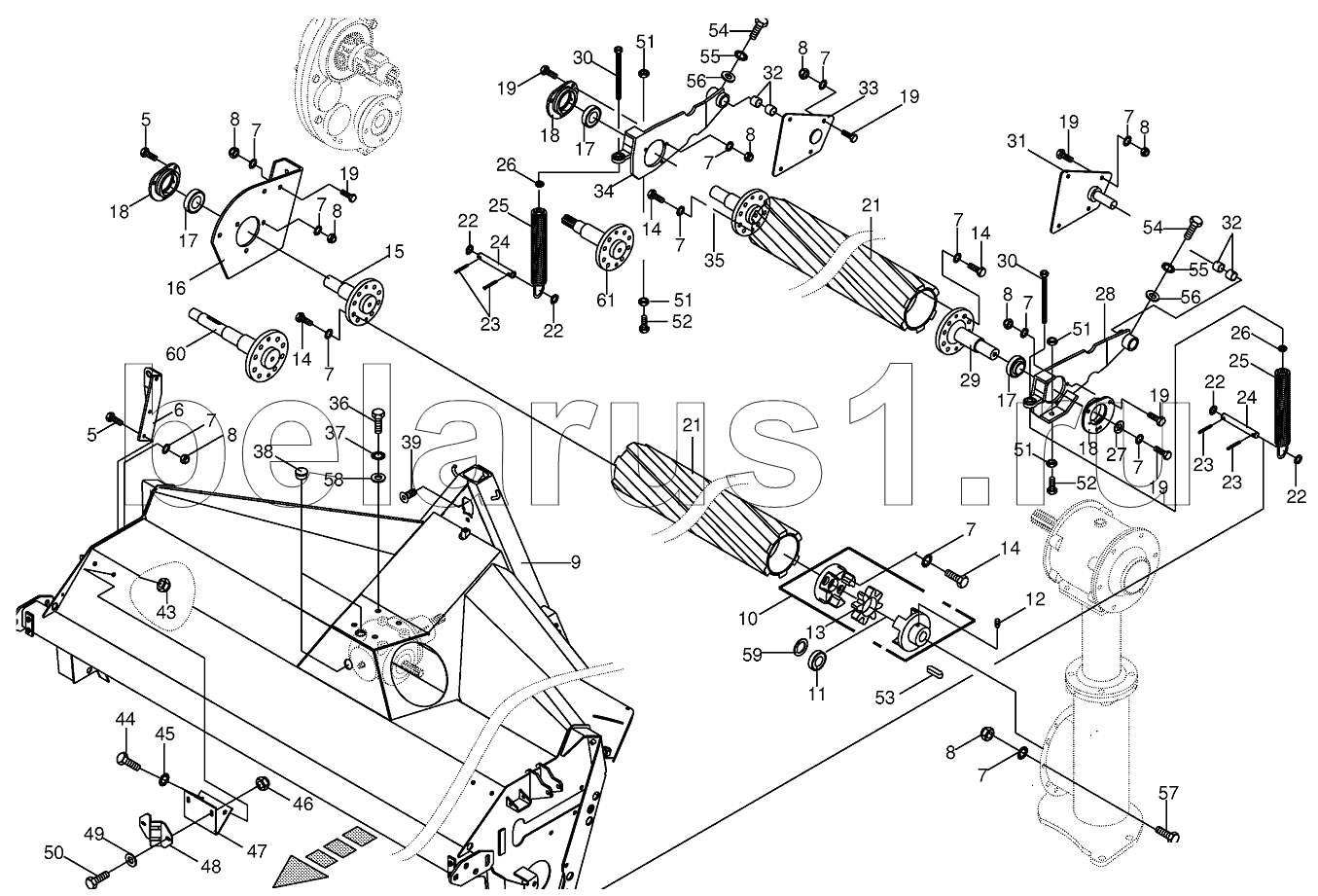

Каталог запасных частей к технике: KRONE EC 32CRI. Frame/CRI-Roller
5
5
6
7
7
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
9
10
10
10
11
11
11
12
13
14
14
14
14
15
16
17
17
17
18
18
18
19
19
19
19
19
19
21
21
22
22
22
22
23
23
23
24
24
25
25
26
26
27
28
29
30
30
31
32
32
33
34
35
36
37
38
39
43
44
45
46
47
48
49
50
51
51
51
51
52
52
53
54
54
55
55
56
56
57
58
59
60
60
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5 | 9006570 | Hex head bolt | |
| 6 | 2581722 | Support -right | |
| 7 | 9099101 | Detent edged washer | |
| 8 | 9087010 | Locknut | |
| 9 | 2581079 | Roller conditioner housing | |
| 10 | 9400822 | Rotex-clutch | |
| 10 | 270011000 | Rotex-clutch | |
| 11 | 900001390 | Radial bearing | |
| 11 | 9347530 | Radial bearing | |
| 12 | 9057550 | Threaded pin | |
| 13 | 9402181 | Rotex plastic part | |
| 14 | 9006560 | Hex head bolt | |
| 15 | 2581893 | Bearing bolt | |
| 16 | 200302340 | Bearing bracket | |
| 17 | 900000600 | Grooved ball bearing | |
| 18 | 200302470 | Self-aligning bearing housing | |
| 19 | 9006550 | Hex head bolt | |
| 21 | 2582010 | CRI-Roller | |
| 22 | 9105122 | Washer | |
| 23 | 9126701 | Roll pin | |
| 24 | 1552902 | Pin | |
| 25 | 2581670 | Tension spring | |
| 26 | 9086200 | Hex nut-low form | |
| 27 | 9106431 | Washer | |
| 28 | 200301660 | Rocker-incl. bushing | |
| 29 | 2581893 | Bearing bolt | |
| 30 | 9003491 | Hex head bolt | |
| 31 | 2581620 | Rocker bearing | |
| 32 | 9349460 | Bearing bush | |
| 33 | 2581640 | Rocker bearing | |
| 34 | 200301670 | Rocker-incl. bushing | |
| 35 | 2581893 | Bearing bolt | |
| 36 | 9006750 | Hex head bolt | |
| 37 | 9099121 | Detent edged washer | |
| 38 | 9250080 | Sealing plug | |
| 39 | 9040060 | Countersunkscrew | |
| 43 | 9087580 | Locknut | |
| 44 | 9006320 | Hex head bolt | |
| 45 | 9099091 | Detent edged washer | |
| 46 | 9087060 | Locknut | |
| 47 | 2541680 | Support | |
| 48 | 1466052 | Illumination support -front | |
| 49 | 9106030 | Washer | |
| 50 | 9006140 | Hex head bolt | |
| 51 | 9082200 | Hex nut | |
| 52 | 9006770 | Hex head bolt | |
| 53 | 9150390 | Fit-in key | |
| 54 | 9002722 | Hex head bolt | |
| 55 | 9099091 | Detent edged washer | |
| 56 | 9108030 | Shim ring | |
| 57 | 9011220 | Hex head bolt | |
| 58 | 9103620 | Washer | |
| 59 | 9108651 | Shim ring | |
| 60 | 2581994 | Drive spigot -for gearbox 20 030 170 0 | |
| 60 | 200304650 | Drive spigot -for gearbox 20 030 170 0 | |
| 61 | 200301761 | Drive spigot -for gearbox 20 030 170 0 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
