Каталог запасных частей к технике: KRONE EC 32CRI. Cutter bar with bearings
1
1
1
2
2
2
2
2
2
3
3
3
4
4
4
5
5
6
6
6
7
7
7
8
9
10
11
12
12
13
14
15
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
35
36
37
37
38
39
40

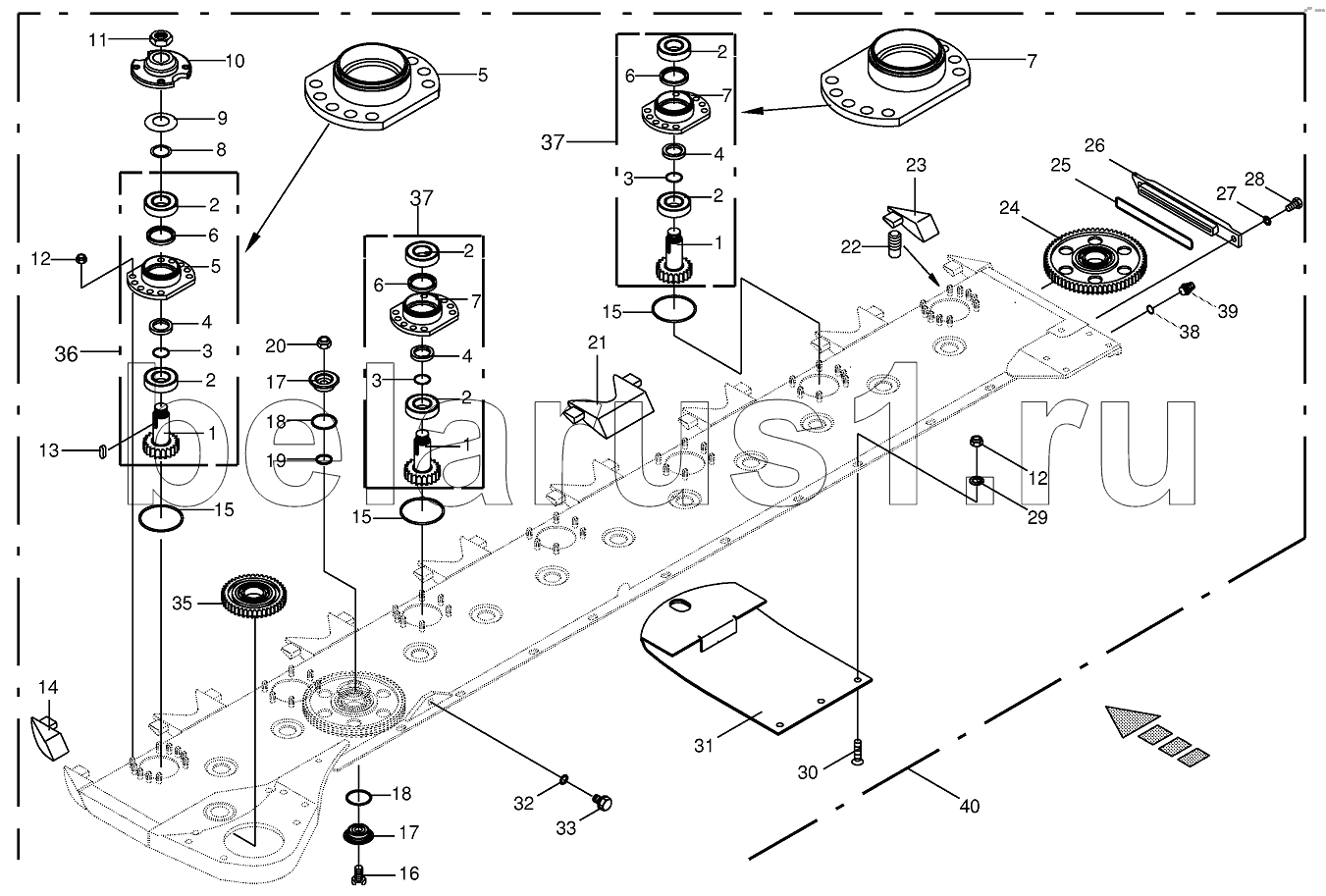

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9261010 | 9261010 | Oil-Id.-no.= 1ltr | |
| 1 | 2530274 | Pinion | |
| 2 | 9303410 | Grooved ball bearing | |
| 3 | 9375020 | O-ring | |
| 4 | 2530265 | Spacer ring | |
| 5 | 2530233 | Bearing housing | |
| 6 | 9360491 | Radial-shaft sealing ring | |
| 7 | 2530243 | Bearing housing | |
| 8 | 9111330 | Shim ring | |
| 9 | 2530281 | Spring washer | |
| 10 | 2530256 | Rotor hub | |
| 11 | 9085364 | Hex nut | |
| 12 | 9087010 | Locknut | |
| 13 | 9151080 | Fit-in key | |
| 14 | 2530153 | Sheet edge -left | |
| 15 | 9375760 | O-ring | |
| 16 | 9003351 | Hex head bolt | |
| 17 | 2530201 | Clamping piece | |
| 18 | 9375790 | O-ring | |
| 19 | 9375780 | O-ring | |
| 20 | 9096110 | Self-locking nut | |
| 21 | 2535470 | Sheet edge | |
| 22 | 9064040 | Weld. pin | |
| 23 | 2530163 | Sheet edge -right | |
| 24 | 2530300 | Spur gear | |
| 25 | 9375680 | O-ring | |
| 26 | 2534214 | Cover | |
| 27 | 9099091 | Detent edged washer | |
| 28 | 9006340 | Hex head bolt | |
| 29 | 9099101 | Detent edged washer | |
| 30 | 9040622 | Countersunkscrew | |
| 30 | 9040711 | Countersunkscrew | |
| 31 | 2534801 | Заказать | Skid |
| 32 | 9377210 | Gasket ring | |
| 33 | 9060071 | Screw plug | |
| 35 | 2530330 | Spur gear | |
| 36 | 2530213 | Bearing housing -10 hole, single | |
| 37 | 2530223 | Bearing housing -10 hole, changing | |
| 38 | 9377270 | Gasket ring | |
| 39 | 9198111 | Breather | |
| 40 | 200303350 | Cutter bar-cpl. |
